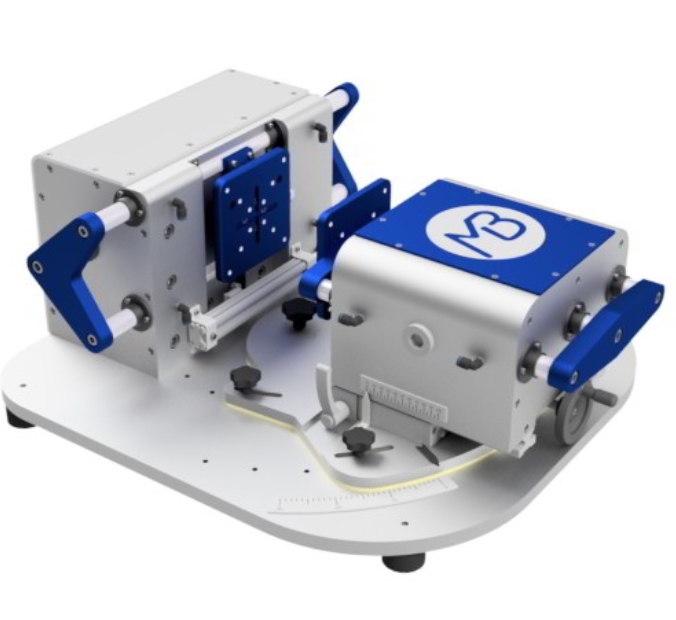

2D Tribo-Acoustic Test System
Analysis Of Stick-Slip, Friction And Sliding Noises, Material Damping, Abrasion And Wear
The MB Dynamics 2D Tribo-Acoustic test bench enables the testing of diverse material pairings and components under real, highly dynamic relative motions and normal forces. It is designed to analyse friction, friction noise, stick-slip phenomena, material damping, and abrasion and wear. By precisely replicating real dynamic load conditions, it offers more accurate predictions of practical stick-slip risks and enables a more precise analysis of abrasion and wear.
The 2D Tribo-Acoustic Test Bench design is entirely friction-free, and the actuators operate with extremely low noise, allowing direct measurement of frictional forces and accelerations at contact surfaces without interference from additional leaf spring elements or friction in drive and guide components. The test bench supports stick-slip tests using specified RANDOM excitation profiles (PSDs, such as those outlined in GMW 16321) and tests with constant relative speeds and normal forces (e.g., VDA-230-206, FORD CETP01.05). Standardised sample holders with leaf springs are available for VDA 230-206 tests. Additionally, tests can be conducted with the addition of oils, lubricants, greases, various liquids or pastes, as well as dirt and dust, as an optional feature.
Features & Benefits
- Highly dynamic simulation of relative motions, forces and accelerations in 2 axes
- Freely definable motion profiles
- Extremely quiet, frictionless actuators, no influence on the measurement data
- Recording of accelerations, forces, position, temperature and humidity
- Interchangeable sample holders with and without leaf spring
- Standard-compliant testing in accordance with VDA 230-206 including RPN calculation
- Measurement of static and dynamic friction
- Measurement & evaluation of friction noise
- Fully automatic execution of predefined test cycles
- Suitable for use in a climatic chamber in a temperature range from -40°C to +80°C
Typical Applications
- Analysis and evaluation of the stick-slip risk of various material pairings and surfaces according to various test specifications
- Measurement of friction forces and friction coefficients
- Analysis of the emitted friction noise with acoustic and psychoacoustic analyses
- Aging, abrasion and wear tests
- Analysis of the damping properties
Options / Accessories
- Standardised leaf spring and specimen holder for tests in accordance with VDA 230-206
- Testing of friction, abrasion and wear of various material combinations with added oils, lubricants, greases, various liquids or pastes as well as dirt and dust
