Vibration Controllers
Scalable up to 64 channels

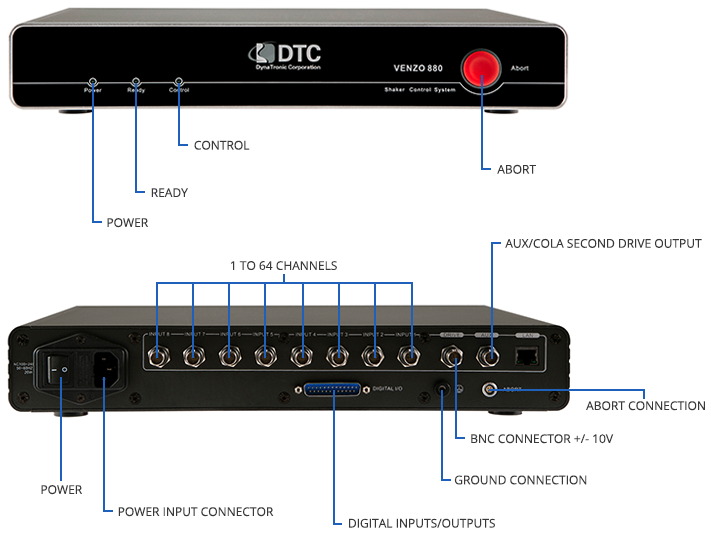

The Dynatronic VENZO 800 series vibration controller represents the next generation of vibration controllers, offering comprehensive and innovative control functionalities alongside extensive analysis capabilities. Its Ethernet connection enables calibration from anywhere, the floating ground design mitigates grounding issues, 450MHz DSP processing enhances speed, and the no-fans structure minimises background noise.
Software

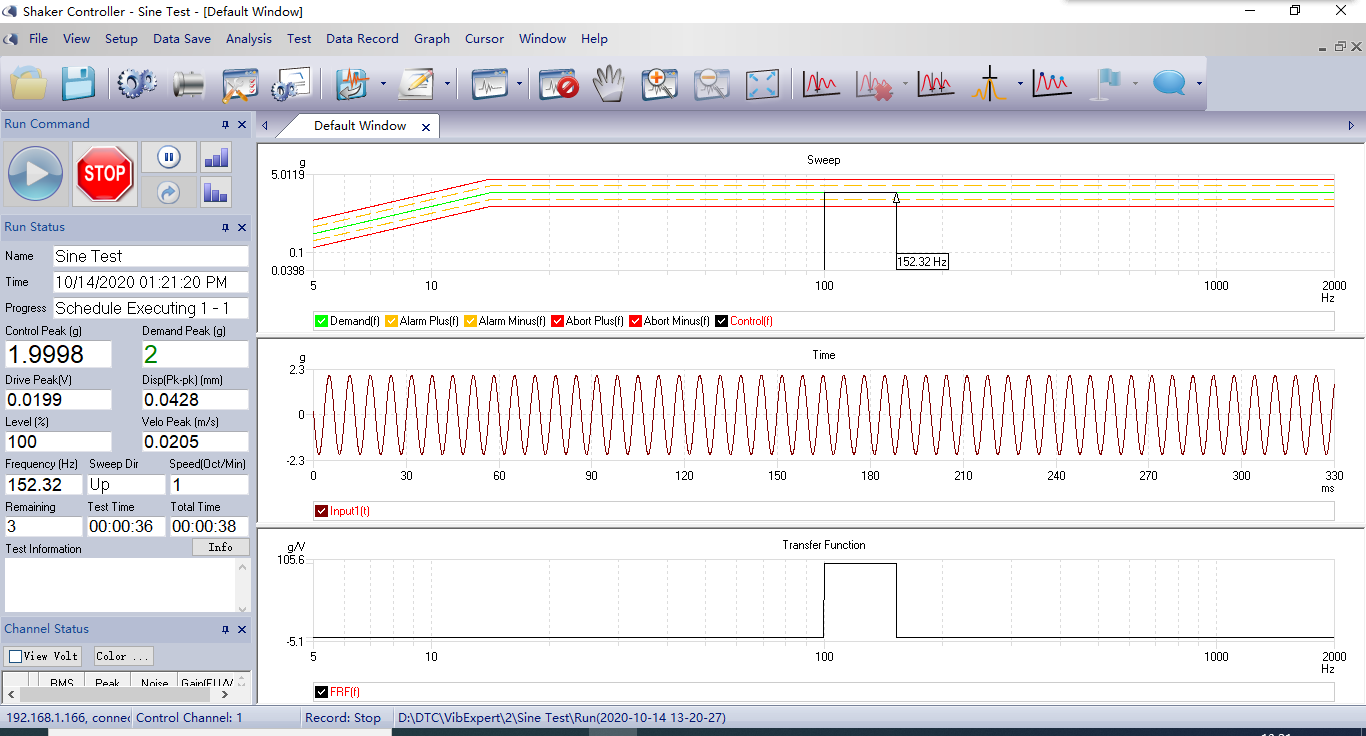

SINE TEST
Perform closed swept sine vibration to determine resonant frequencies and damping factors, overall peak G response of the structure.
RANDOM TEST
Perform real-time closed loop control of PSD profiles.

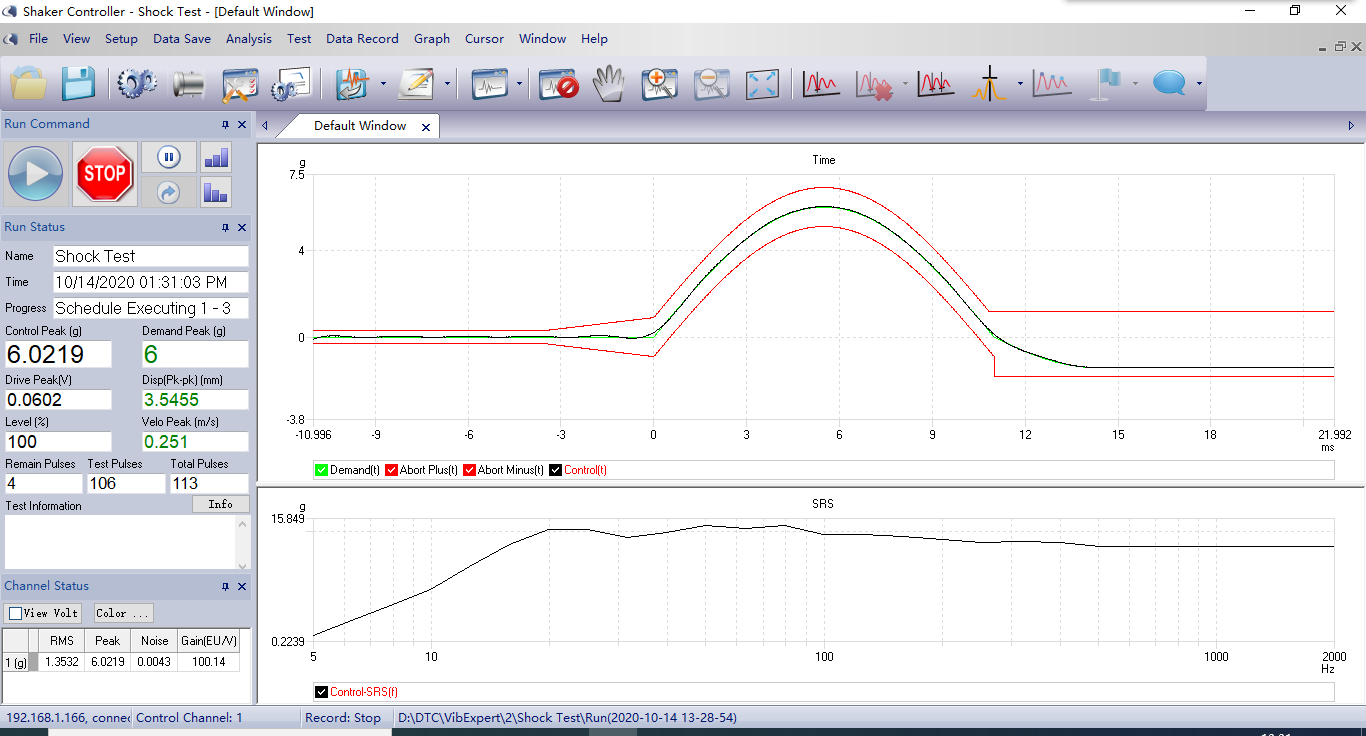

SHOCK TEST
Perform closed loop control of transient waveform. The entire transient period is sampled simultaneously & gap free. All classical types are supported. There are several displacement optimising methods.

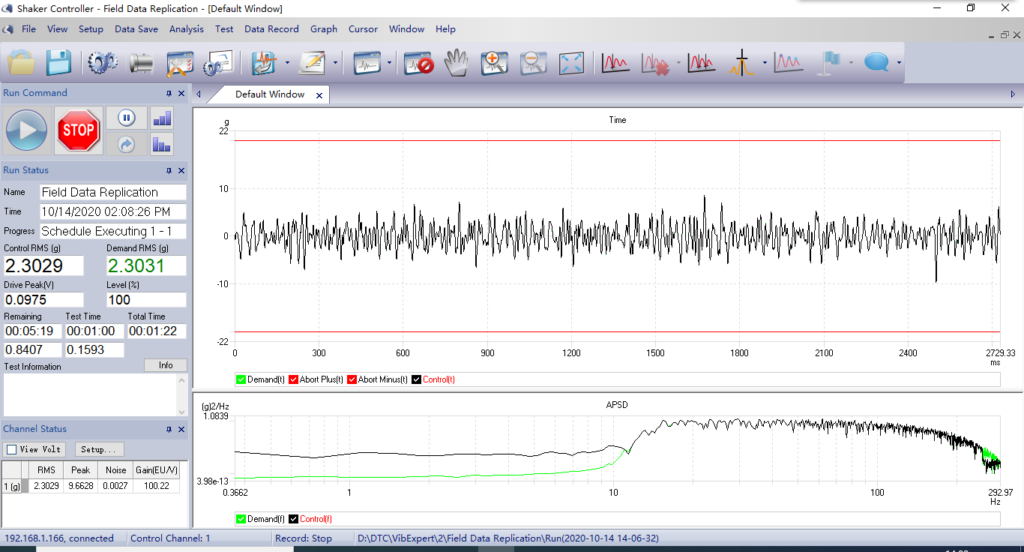

FIELD DATA REPLICATION
Field Data Replication (FDR) is used to replicate the measured field data by importing the vibration elements.
Benefits
- Up to 204.8kHz sampling rate
- 24-bit Inputs & Outputs
- 3 years Hardware Warranty
- 25,600 lines of Spectral Resolution
- DSP Processor
- Demo Unit with ALL software
- Rear remote I/O panel
