In-Vehicle Noise Analysis
Highly Accurate Correlation To Road Conditions & Excellent Reproducibility Of Noise Patterns

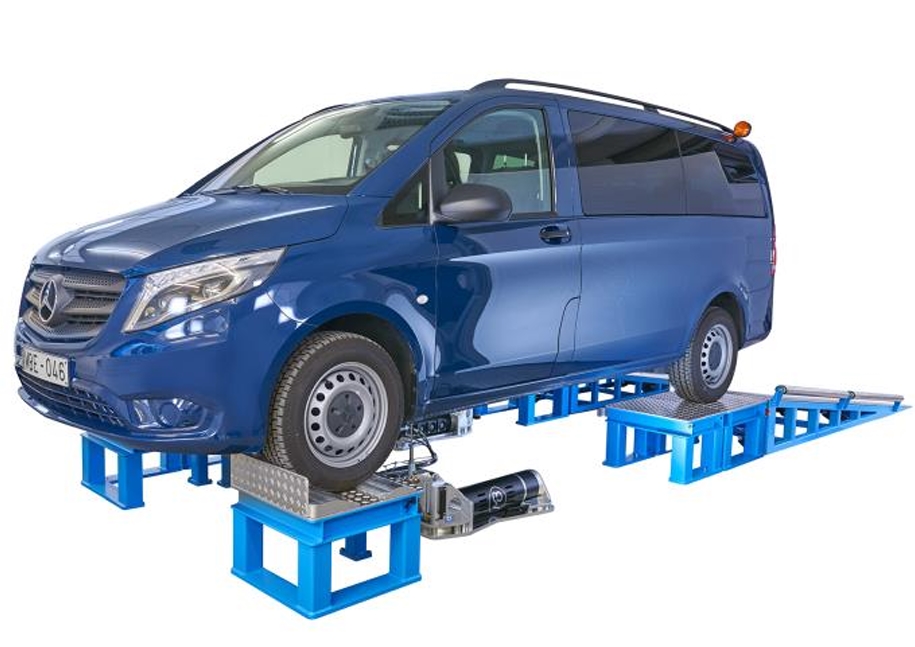

Rattling, creaking, and squeaking noises can be effectively analysed and evaluated using the full vehicle shaker systems from MB Dynamics.
Conducting noise analysis in moving vehicles on various test tracks is often time-consuming and challenging. The vehicle shaker systems bring a wide array of global test tracks into your testing, quality management, and production areas.
Different excitation states to mimic various road surfaces, speeds, and engine conditions are realistically and reproducibly simulated at the push of a button. This allows for efficient localisation, analysis, and evaluation of Buzzes, Squeaks, and Rattles through targeted excitation and the combination of noise-critical driving situations, all while allowing free mobility in and around the vehicle.
With the addition of a component testing table, individual modules and components can also be tested. For use in climatic chambers, the optional water cooling and thermal insulation of the ALPHA shakers support operation within a temperature range of -40°C to +80°C.
Features & Benefits
- Use of 2 or 4 linear, low distortion electromagnetic shaker systems – no hydraulics, no oil!
- Realistic reproduction of various road excitations (cobblestones, bad roads, potholes, rough asphalt, etc.) by multi-axis closed-loop feedback control for up to 4 shakers
- Very good correlation to road driving and high reproducibility of noises
- Displacement of up to 25mm pk-pk at the vehicle body
- Excitation in the frequency range from 1Hz to 500Hz
- Freely configurable test sequences for mapping and combining different excitation signals or test tracks
- Reproducible acoustic behaviour of the vehicles
- Extremely quiet – operating noise typically <32dB(A) – ideal for Squeak & Rattle analysis
- Safe stand of the vehicle allows analyses of interior, exterior & underbody
- Free movement inside and outside the vehicle
- Integrated active load support allows entry & exit during a running test
- Climate option allows use within a climate chamber
- Simulation of ageing and material fatigue by endurance run and superimposed climate test or sun simulation (optional)
- Integrated temperature monitoring and overtravel protection
- Low integration and maintenance costs
- Low space requirement due to installation of the shakers underneath the vehicle
- High efficiency and low power consumption
- Low stray magnetic fields
- Stationary and mobile test bench solutions
- Fully automated solutions for line-integrated testing
- Suitable for vehicles with a total weight of up to 3800kg
- Optional vibrating table allows use for component testing
- 10 years experience with various OEMs such as BMW, Mercedes, GM, Volkswagen, Peugeot, Hyundai.
Typical Applications
- Noise analyses (Squeak & Rattle tests) on complete vehicles, interior and exterior components
- Squeak & Rattle Ageing Tests (endurance test)
Options / Accessories
- Water cooling for ALPHA shakers
- Climate option for use within a climate chamber (-30°C to +80°C)
- Component testing tables for excitation in 1 to 6 axes
- Mobile BSR SUITE measurement system for Road Load Data Acquisition
- Acoustic test system for the objective evaluation of Buzzes, Squeaks & Rattles
