IEPE Accelerometers
Discover the Precision of Kemo’s IEPE Accelerometers
We offer a large range of IEPE Accelerometers from Kemo for vibration measurement. These advanced accelerometers use Integral Electronics Piezoelectric (IEPE) technology with integrated electronic amplifiers for seamless connectivity to compatible Data Acquisition Systems (DAQ).
From ultra-miniature devices weighing less than 0.5 grams to high-sensitivity seismic sensors, Kemo IEPE Accelerometers meet diverse needs. The triaxial models offer low mass and high-frequency response, ensuring precise measurements. Custom sensitivity options are available to meet specific application requirements. Our lineup includes ultra-miniature monaxial and triaxial accelerometers. The Piezoelectric charge output devices and IEPE signal conditioning units deliver a complete vibration measurement solution.
Accelerometers
GV100S-T
The GV100S-T is a general purpose monoaxial IEPE accelerometer with a side entry 10/32UNF microdot connector and a tapped base for stud mounting. Featuring a shear design PZT-5 sensing element the GV100S-T is widely used as a control accelerometer for vibration shaker testing as well as general vibration measurements where mass is less of an issue
- General Purpose IEPE Accelerometer
- Shear design
- Piezoelectric ceramic PZT-5
- Sensitivity – 100mV/g
- Mass – 6.9grams
- 10-32UNF side entry connector
- 10-32UNF Tapped base
GV100T-T
The GV100T-T is a general purpose monoaxial IEPE accelerometer with a top entry 10/32UNF microdot connector and a tapped base for stud mounting. Featuring a shear design PZT-5 sensing element the GV100T-T is widely used as a control accelerometer for vibration shaker testing as well as general vibration measurements where mass is less of an issue.
- General Purpose IEPE Accelerometer
- Shear design
- Piezoelectric ceramic PZT-5
- Sensitivity – 100mV/g
- Mass – 6.9grams
- 10-32UNF top entry connector
- 10-32UNF Tapped base
GV10T-T
The GV10T-T is a general purpose monoaxial IEPE accelerometer with a top entry 10/32UNF microdot connector and a tapped base for stud mounting. Featuring a shear design PZT-5 sensing element the GV10T-T is widely used as a control accelerometer for vibration shaker testing as well as general vibration measurements where mass is less of an issue.
- General Purpose IEPE Accelerometer
- Shear design
- Piezoelectric ceramic PZT-5
- Sensitivity – 10mV/g
- Mass – 5.8grams
- 10-32UNF top entry connector
- 10-32UNF Tapped base
GV10S-T
The GV10S-T is a general purpose monoaxial IEPE accelerometer with a side entry 10/32UNF microdot connector and a tapped base for stud mounting. Featuring a shear design PZT-5 sensing element the GV10S-T is widely used as a control accelerometer for vibration shaker testing as well as general vibration measurements where mass is less of an issue.
- General Purpose IEPE Accelerometer
- Shear design
- Piezoelectric ceramic PZT-5
- Sensitivity – 10mV/g
- Mass – 5.8grams
- 10-32UNF side entry connector
- 10-32UNF Tapped base

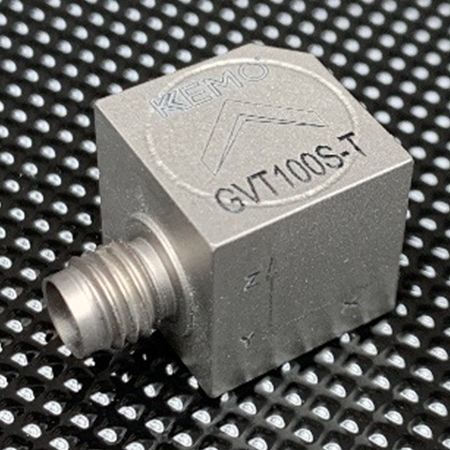

GVT100S-T
The GVT100S-T is a general purpose triaxial IEPE accelerometer for the measurement of broad band vibration in a wide range of vibration test applications.
Its small size and low mass make it an ideal all rounder.
- Triaxial IEPE Accelerometer
- Sensitivity – 100mV/g
- Shear design
- Piezoelectric ceramic PZT-5
- Mass – 11grams
- ¼-28UNF side entry 4 pin connector
- Tapped base for stud mounting
SVT100S-T
The SVT100S-T is a miniature triaxial IEPE accelerometer for use where mass loading is potentially an issue and should be minimised. At just 11.5mm cube and 5.8 grams it has an excellent frequency response. Tapped on two sides for ease of mounting.
- Miniature Triaxial IEPE Accelerometer
- Sensitivity – 100mV/g
- Shear design
- Piezoelectric ceramic PZT-5
- Mass – 5.8grams
- ¼-28UNF side entry 4 pin connector
- 5-40UNC tapped base for mounting
SVT10S-T
The SVT10S-T is a miniature triaxial IEPE accelerometer for use where mass loading is potentially an issue and should be minimised. At just 10.2mm cube and 3.9 grams it has an excellent frequency response. The standard ¼-28UNF 4 pin connector offers an improved compatibility with customers existing cables.
- Miniature Triaxial IEPE Accelerometer
- Sensitivity – 10mV/g
- Shear design
- Piezoelectric ceramic PZT-5
- Mass – 3.9grams
- ¼-28UNF side entry 4 pin connector
- 5-40UNC tapped base for mounting
